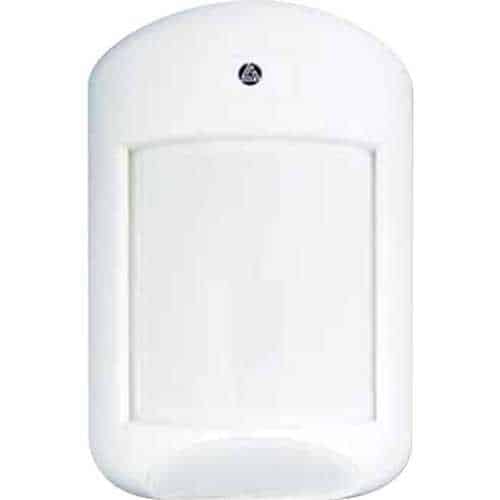

AI NEXT AL-40 Qualified Motion Analysis Detector

Description

Features

• QMA – Qualified Motion Analysis
• Rock Solid RFI Immunity
• Dual Slope Temperature Compensation
• Optional 100 lb Animal Immunity lens included.
• Current Consumption 4mA
• Multi-Function LED
  • Ambient Temperature Detection
  • Self Dimming LED

Specs

• Type QMA – Qualified Motion Analysis
• Input Voltage 10.6 to 16VDC
• Input Current 15 mA maximum, 10 mA quiescent (approx.)
• Pyro Type Dual element Pulse Count 2/4 pulses (selectable) Warm Up Period 50 secs. max.
• Alarm Period 2.4 secs, retriggerable
• Visual Indicator Red Alarm LED (selectable on /off )
• Alarm Output NC dsolid state, 19 VDC, 100 mA, 13 ohms resistance typ.
• Tamper Output NC, dry contact, 30 VDC, 500 mA, 5 W max.
• Mounting Height 6.5 to 8.5 ft. (2 to 2.6m)
• OperatingTemperature +14° F to +131° F;
• Humidity: 95% max.
• Dimensions 3.9″ (98mm) L; 2.5″ (64mm) W; 1.7″ (42mm) H
• Weight 3.0 oz. (83.5g)
