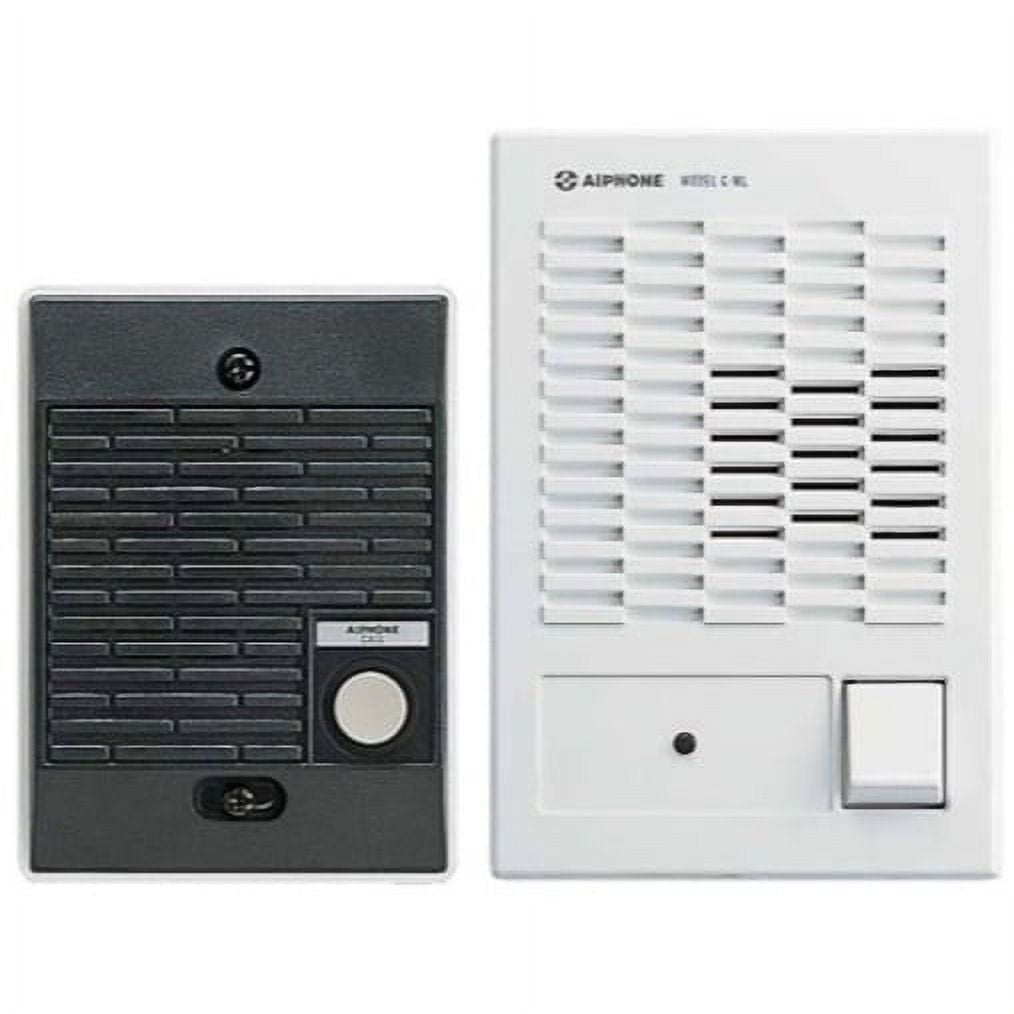

Aiphone C-123L/A: Chime Com System C123LA

Description

C-123L/A: Single master set includes a door station (C-D) and a master stations (C-ML/A). Additional masters may be added. Each master requires a separate power supply, either the SKK-620 or 4 “C” batteries. The door station calls the master(s) by pressing a call button that initiates a chime. Communication is Push to talk/release to listen at the master and hands free at the door station. Communication times out after being idle for twenty seconds.

Main Features

• Box set includes C-ML/A and C-D
• Chime from door station answered from inside station
• Door release

Specs

• Power Consumption: 85mA (6V DC) max.
• Output: 100mW
• Type of communication: Push-to-talk (simplex)
• Door Release Contact: N/O dry contact, 30V AC/DC 1A
• Mounting: Wall mount
• Wire Type: 2-cond., overall shield – use Aiphone #822202(22AWG) or #821802(18AWG)
• Wire Distance: Door Station to farthest Master Station: 245′(22AWG), 590′(18AWG)
