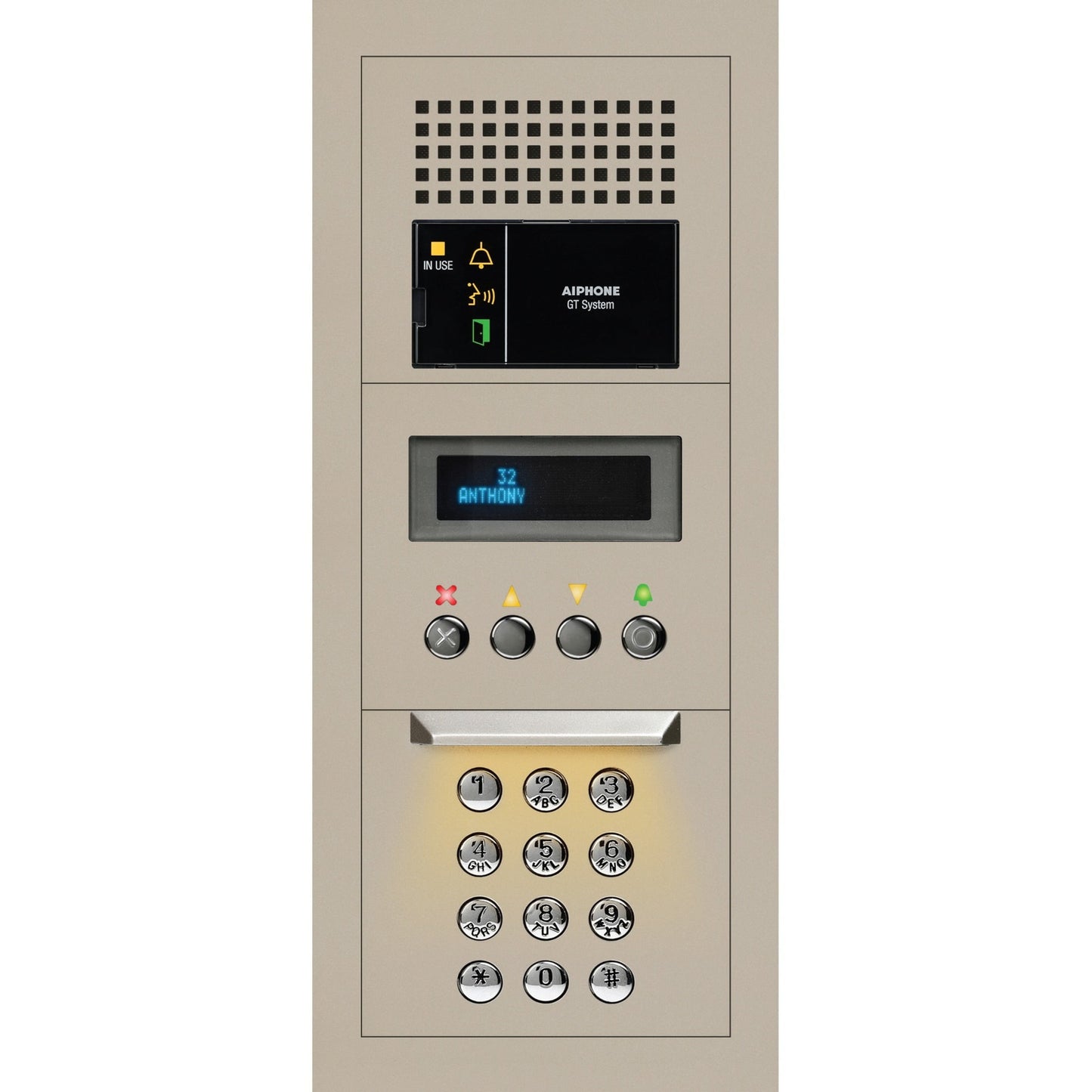

Aiphone GTA-DESB 10-Key Audio Entrance Panel Kit

Description

The GTA-DESB is a modular audio entrance station for the GT Series multi-tenant video intercom system. It is equipped with an audio module for communication, a keypad for direct dialing, and a display module to show a greeting message, tenant directory, and system status. A built-in user guide on the audio module can be configured to display one of six languages. The guide provides operational assistance by lighting the appropriate icon along with the option for audible instruction.

The GTA-DESB works on a common bus wiring system, carrying the calling and communication functions on a 2-conductor wire. A separate power supply provides voltage to the tenant directory module, while the power for the audio is supplied on the common bus wires.

The entrance station is designed to be semi-flush mounted. For added weather resistance, there is an optional rain hood and a hooded surface mount box available. Use the surface mount box if surface mounting is required.

Main Features

• Kit Includes: GT-DB audio module and GT-NSB digital display and directory
• Hands-free audio communication
• Direct dialing, alphabetical scrolling, or “jump” scrolling by letter to select tenant name
• Up to 500 names/numbers can be stored in the tenant directory module
• Alphanumeric room numbers and/or names can be programmed
• Access control door entry with up to 500 unique codes to activate door release
• Scrolling welcome message, up to 160 characters, adjustable scroll speed
• Display module displays tenant name and their dialing number
• PC program for loading tenant information, access codes, and welcome message (via USB)
• Semi-flush mount with the option of a rain hood (GT-103H) or surface mount with hooded box (GT-103HB)
• Zinc die cast weather and vandal resistant construction
