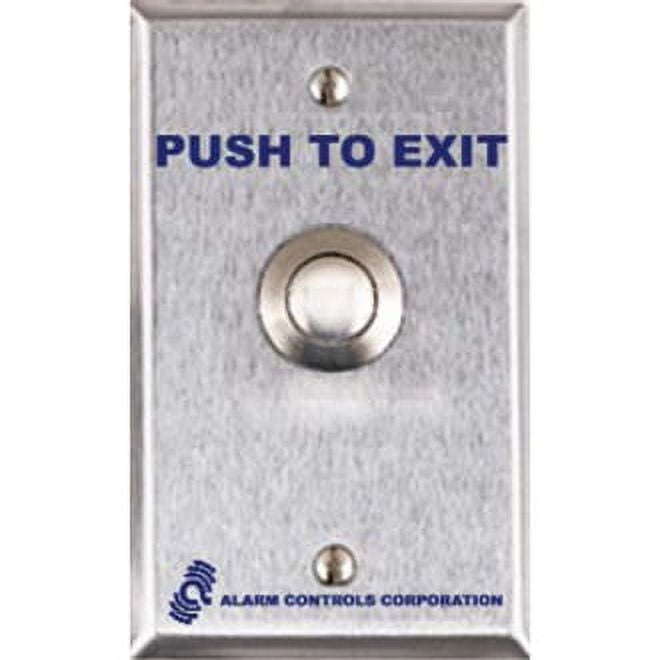

Alarm Controls TS-12 Vandal Resistant Request-to-Exit Station, 3/4″ Push Button, Single Gang, 430 Stainless Steel

Description

Alarm Controls TS-12 Vandal Resistant , with vandal resistant push button, provide an effective means of locking an exit door while still providing egress during an emergency. Vandal resistant push buttons are designed for indoor, outdoor, commercial and industrial applications. Both models are available with timer relay for applications that require door to remain unlocked for a specified time.

Standard Features

• TS-12switch mounted on single gang wall plate with 430 stainless steel finish
• TS-13switch mounted on narrow 1-3/4″ wall plate with 302 stainless steel finish
• Vandal resistant 3/4″ push button
• Plate is screened “PUSH TO EXIT” for easy to follow access instructions
• Momentary action switch

Specifications

Certifications & Listings

• UL 294 listed
• CSA certified components
• IP65 TS-12302 model only

Electrical:

• DPDT contacts rated10A at 35 VDC
• Switch depth behind plate: 1-1/2″
• Switch terminated with 10” leads
