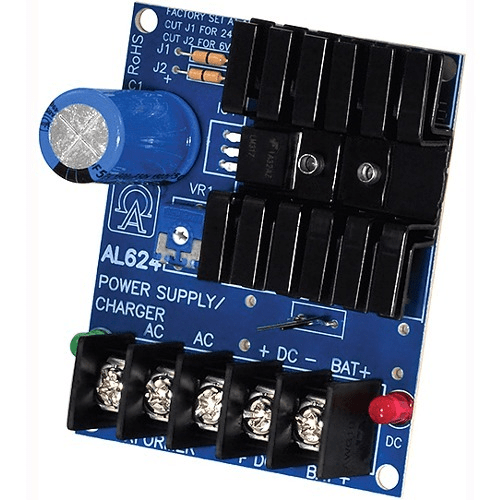

Altronix AL624 Proprietary Power Supply

$31.04 & Free Shipping

  • Linear Power Supply/Charger.
  • 6VDC or 12VDC @ 1.2A or 24VDC @ 750mA.

In stock

SKU: AX-AL624 Category:

Description

Altronix AL624 power supply/charger converts a low voltage AC input into 6VDC, 12VDC or 24VDC output. This general purpose power supply has a wide range of applications for access control, security, and CCTV system accessories that require additional power.

Main Features
  • Voltage 16VAC to 24VAC, 20VA to 40VA.
  • Voltage 6VDC/12VDC/24VDC selectable.
  • Current 6VDC or 12VDC @ 1.2A supply current or 24VDC @ 0.75A supply current.
  • Other Short circuit and thermal overload protection.
  • Filtered and regulated.
  • Type Sealed lead acid or gel type.
  • Failover Upon AC loss, instantaneous.
  • Input Input voltage is present.
  • DC Output Powered.
  • Dimensions (L x W x H) 2.5โ€ x 3โ€ x 1.5โ€ (63.5mm x 76.2mm x 38.1mm).

Additional information

Weight 0.199996 lbs
Brand

Resources

User Manualย
