Altronix Maximal75E

$768.33 & Free Shipping

  • Filtered and electronically regulated outputs (built-in power supply).
  • Thermal and short circuit protection with auto reset.
  • AC Supervision & Battery Monitoring

In stock

SKU: AX-MAX75E Category:

Description

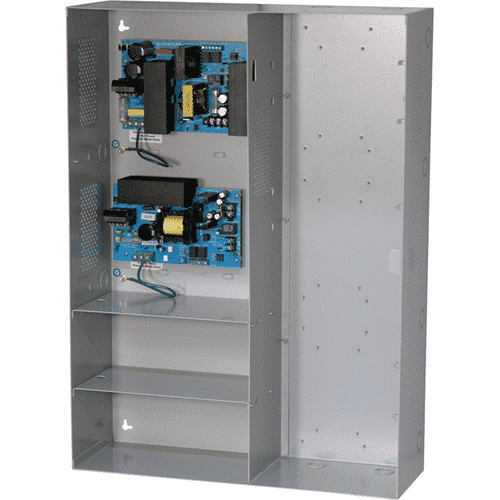

Altronix Maximal75E

Maximal Expandable Power System provide system designers and installers with maximum power choices and the highest levels of versatility. They provide 12VDC, 24VDC, or 12VDC and 24VDC simultaneously via two (2) single output power supply/chargers.

Includes AC fail, low battery and battery presence monitoring. Custom enclosure facilitates up to four (4) 12VDC/12AH batteries

Main Features
  • Filtered and electronically regulated outputs.
  • Thermal and short circuit protection with auto reset.
  • Supervision: AC Fail/ Low Battery and Battery Presence.
  • Built-in charger for sealed lead acid or gel type batteries.
  • Instantaneous transfer to stand-by batteries.
  • AC input and DC output LED indicators.
  • Enclosure accommodates up to four (4) 12VDC/12AH batteries.
  • UL Listed in the U.S. and Canada.
  • Lifetime Warranty / Made in the U.S.A.

Additional information

Weight 29.299506 lbs
Item Condition

New

MPN

MAXIMAL75E

Brand

Resources

User Manualย
