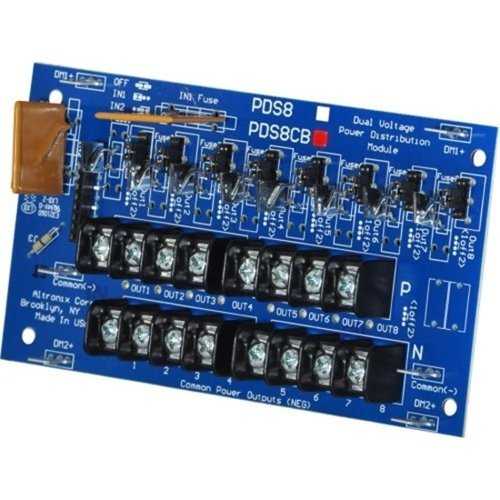

Altronix PDS8CB Dual-Input Power Distribution Module
$54.79 & Free Shipping
- Eight (8) PTC protected power outputs are selectable to follow power Input 1 or Input 2.
- Individual voltage LEDs indicate 12VDC (Green) or 24VDC (Red and Green).
- Surge suppression.
Only 10 left in stock
Description
PDS8CB dual input power distribution module is designed to steer the power from either two (2) low voltage AC or DC power sources. This power is distributed over a total of eight (8) PTC protected outputs.
Main Features
- Input 1 and Input 2 Voltage range: 5VDC to 24VDC up to 9A each or 16VAC to 28VAC up to 9A each.
- Any of the eight (8) PTC protected power outputs are selectable to follow power Input 1 or Input 2.
- Individual outputs may be set to OFF position for servicing.
- PTC protected outputs rated @ 2A. (total output current should not exceed max current rating of power supply employed).
- Surge suppression
- Individual voltage LEDs indicate 12VDC (Green) or 24VDC (Red and Green).
- Operating: 0ยฐ C to 49ยฐ C (32ยฐ F to 120ยฐ F).
- Storage: – 20ยฐ C to 70ยฐ C ( – 4ยฐ F to 158ยฐ F).
- Relative Humidity 85% +/- 5%.
Additional information
| Weight | 0.399993 lbs |
|---|---|
