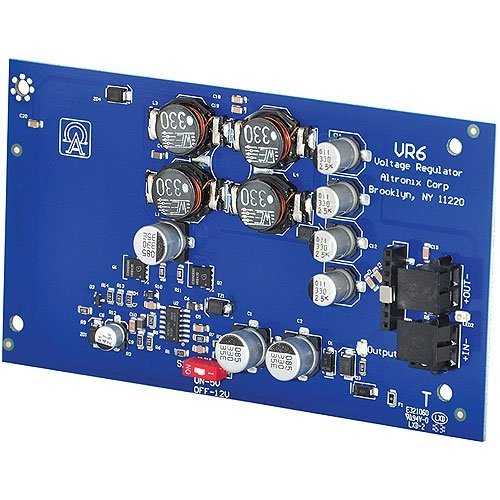

Altronix VR6 Voltage Regulator

Description

Altronix VR6 Voltage Regulator, Converts 24VDC input into 5VDC or 12VDC output

Altronix VR6 Voltage Regulator converts a 24VDC input into a regulated 5VDC or 12VDC selectable output at up to 6A supply current. It reduces the cost of adding an additional power supply to achieve 24VDC and 12VDC or 5VDC simultaneously.

Main Features

• Input: 24VDC @ 1.75A – Output: 5VDC @ 6A.
• Input: 24VDC @ 3.5A – Output: 12VDC @ 6A.
• 5VDC or 12VDC regulated output.
• Output rating 6A max.
• Surge suppression.
• Input and output LEDs.
• Operating: 0° C to 49° C (32° F to 120° F).
• Storage: – 20° C to 70° C ( – 4° F to 158° F).
• Relative Humidity 85% +/- 5%.
• 5VDC: 15 BTU/Hr.
• 12VDC: 37 BTU/Hr.
