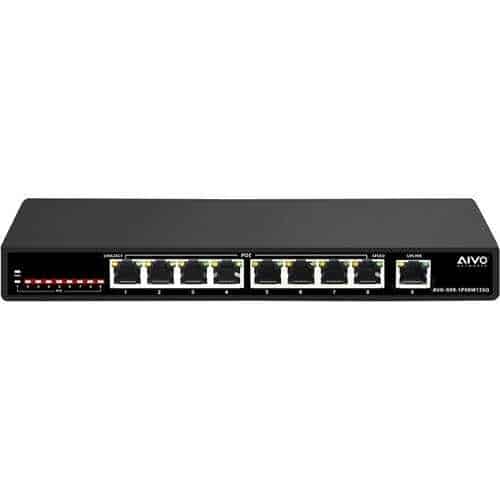

AVYCON AVN-S09-1P08W135G 9-Port 135w Gigabit PoE Switch
& Free Shipping
- Expand your network capacity with the help of 9 networking ports and transfer your data quickly and easily
- Cascade to other network devices through the uplink port to expand your local area network
Special Order
Want to be notified when this product is back in stock?
Description
The AVN-S09-1P08W135G is compact 9 port Gigabit PoE/PoE+ switch, with all ports supporting 10/100/1000 Mbps auto-negotiation and Auto-MDI/MDIX. The 8 PoE ports can automatically detect and provide power for any connected 802.3at/af Powered Device (PD), such as VOIP Phones, APs, IP Phones and IP Cameras. All PoE ports support the IEEE802.3af/IEEE802.3at standard, with a maximum output of 30W per each port and a total PoE budget of 120W.
FEATURES
- IEEE802.3af / IEE802.3at Compliant
- 9 x 10/100/1000 Base-TX ports
- 8 x PoE / PoE+ ports, with each port supporting a 30W max. power output
- Total PoE budget of 120W
- Industrial rated power supply for increased stability
- 4K Entry MAC Address table with Auto-Learning and Auto-Aging
- High backplane bandwidth of 18Gbps
- IEEE802.3x Flow control for Full-duplex Mode and backpressure for Half-duplex Mode
- Advanced surge protection for both power and data ports
- Compact and durable metal case for better reliability
- EMI standards complies with FCC, CE class B
Additional information
| Weight | 5 lbs |
|---|---|
| Brand | |
| ports | 9-port |
