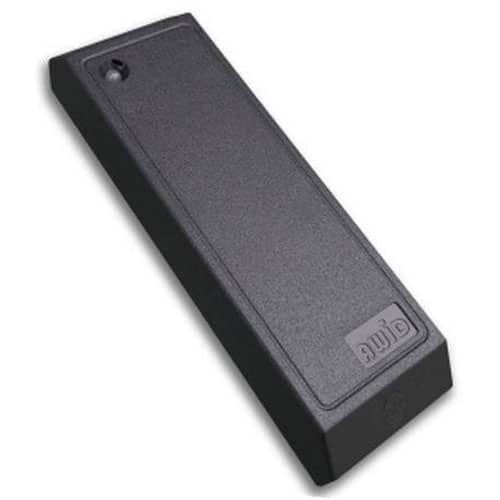

AWID MM-6800 Mullion Wiegand Proximity Reader

The AWID MM-6800 is a mullion-mount proximity reader designed for use in access control systems. It uses Wiegand communication protocol and is compatible with a wide range of access control systems. Here is a brief summary of its features and specifications:

Features:

• Mullion-mount design for easy installation on door frames
• Wiegand communication protocol for compatibility with a wide range of access control systems
• Reads AWID’s proprietary Prox-Linc proximity cards
• LED and audio indicators for visual and audio feedback
• Tamper-resistant design to prevent unauthorized access
• Operating voltage range of 5-14VDC
• Low current draw for energy efficiency
• Reverse polarity protection to prevent damage from incorrect wiring

Specifications:

• Operating Frequency: 125 kHz
• Read Range: up to 5 inches (12 cm)
• Dimensions: 3.38″ x 1.65″ x 0.52″ (8.59 cm x 4.19 cm x 1.32 cm)
• Operating Temperature Range: -40°F to 185°F (-40°C to 85°C)
• Humidity: 0-95% non-condensing
• Weight: 1.6 oz (45 g)
