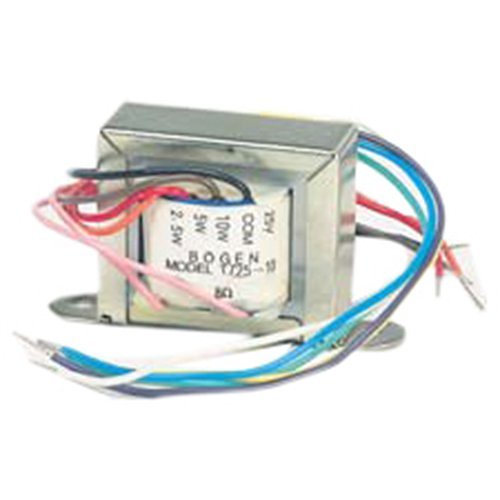

Bogen T72510 Impedance Matching Transformer

Description

Bogen T72510 Impedance Matching Transformer, The Bogen Models T725 and T72510 transformers are speaker-matching transformers that allow an 8-ohm speaker to be connected to 70V or 25V amplifier outputs. An 8-ohm secondary connects to the speaker and the multi-tap primary connects to the 70V or 25V amplifier output. The T725 can be tapped at 4, 2, 1, 1/2, 1/4, and 1/8 watts, while the T72510 can be tapped at 10, 5, 2-1/2, 1-1/4, and 5/8 watts. All wires are easily accessible. The unit’s dimensions measure 2-1/2″ W × 1-1/4″ H × 1-3/8″ D and it weighs approximately 6 oz.

Bogen T72510 Impedance Matching Transformer Main Features

• Allows an 8-Ohms speaker to connect to 70V or 25V Amplifier outputs
• T725 Power Taps: 4, 2, 1, 1/2, 1/4, 1/8W
• T72510 Power Taps: 10, 5, 2-1/2, 1-1/4, 5/8W
• Easily-accessed, stripped and tinned wire terminations
• Small, compact, and cost-effective
