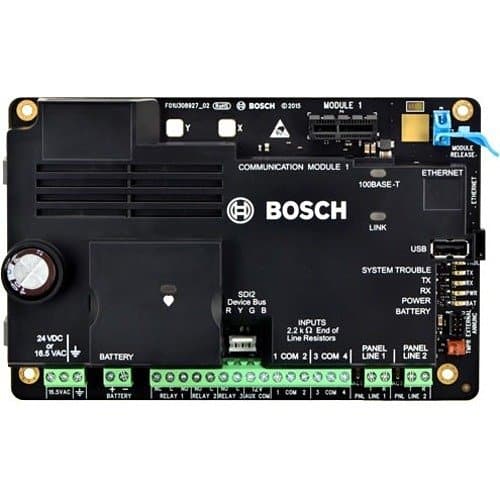

Bosch B465-MW-1640 Universal Alarm Communicator Kit
& Free Shipping
- Compatible with any control panel using Contact ID, SIA, Pulse 3/1 or Pulse 4/2 communication formats (auto detecting)
- No control panel reprogramming required to install
- Supports Ethernet directly and optional plug-in cellular communication technologies in single, or multi-path configurations
Special Order
Want to be notified when this product is back in stock?
Description
The B465 Conettix Universal Dual Path Communicator converts the Public Switch Telephone Network (PSTN) digital dialer, or dry contact outputs from an intrusion/ fire control panel to an IP signal for transmission over the Ethernet or cellular network. The B465 Conettix Universal Dual Path Communicator is UL 864 10 th Edition approved per NFPA 72 version 2013.
The module can use its built-in Ethernet connection, and/or an optional Conettix plug-in cellular module (B440/B441/B442/B443) to send reports to the central station receiver.
Automation programming for the supported control panel remains unchanged with the installation of the B465 module, thus simplifying the installation process This allows for a smooth transition from the PSTN realm into IP. All messages generated internally by the B465 are shown in Contact ID format at the central station.
The module can be powered from a 16.5 VAC transformer or 24 VDC power supply.
The module can use its built-in Ethernet connection, and/or an optional Conettix plug-in cellular module (B440/B441/B442/B443) to send reports to the central station receiver.
Automation programming for the supported control panel remains unchanged with the installation of the B465 module, thus simplifying the installation process This allows for a smooth transition from the PSTN realm into IP. All messages generated internally by the B465 are shown in Contact ID format at the central station.
The module can be powered from a 16.5 VAC transformer or 24 VDC power supply.
Main Features
- Compatible with any control panel using Contact ID, SIA, Pulse 3/1 or Pulse 4/2 communication formats (auto detecting)
- No control panel reprogramming required to install
- Supports Ethernet directly and optional plug-in cellular communication technologies in single, or multi-path configurations
- Supports four configurable inputs and three configurable outputs
- Approved for Commercial Fire/Burglary applications as sole, primary, or secondary communication path
Additional information
| Weight | 1 lbs |
|---|---|
| Brand |
