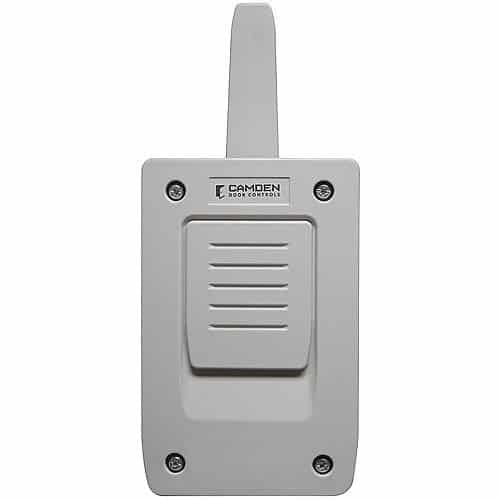

Camden CV-WRX4 4-Channel Wiegand Receiver
& Free Shipping
- 4 channel receiver facilitates in/out control
- Compatible to all access control panels, 26 bit Wiegand
- Field selectable facility codes, 1 to 255
Special Order
Want to be notified when this product is back in stock?
Description
Camdenโs Wiegand receivers are designed to interface with existing access control systems for both long and short access applications. CV-WRX4 receiver is designed for use with Camden CV-WTX2 transmitters.
The transmitter signal is codified in two different protocols according to its configuration: Wiegand 26 and Wiegand 37. The receiver provides facility codes 1 to 255 by DIP switch J9 using 8 bit binary configuration.
Main Features
- Includes: (1) CV-WRX4 868.35 Mhz. Receiver, (2) #6 x 1-1/4″ Screws, (2) #6 Wall Plugs, (1) Cable Plug
- 4 channel receiver with in/out parking gate control
- Multiprotocol receiver, 26 and 37 bit Wiegand
- Facility codes, 1 to 255
- High security rolling code, 19 trillion combinations
- Weather and vandal resistant enclosure
- Input Voltage: 12 VDC
- Current: 4mA typical / 36mA peak
- IP Rating: CV: IP54 (IP65 with cable plug installed)
- Dimensions: 3-1/4″W x 7-3/8″H x 1-5/8″D (82mm x 187mm x 42mm)
Additional information
| Weight | 1 lbs |
|---|---|
| Brand |
