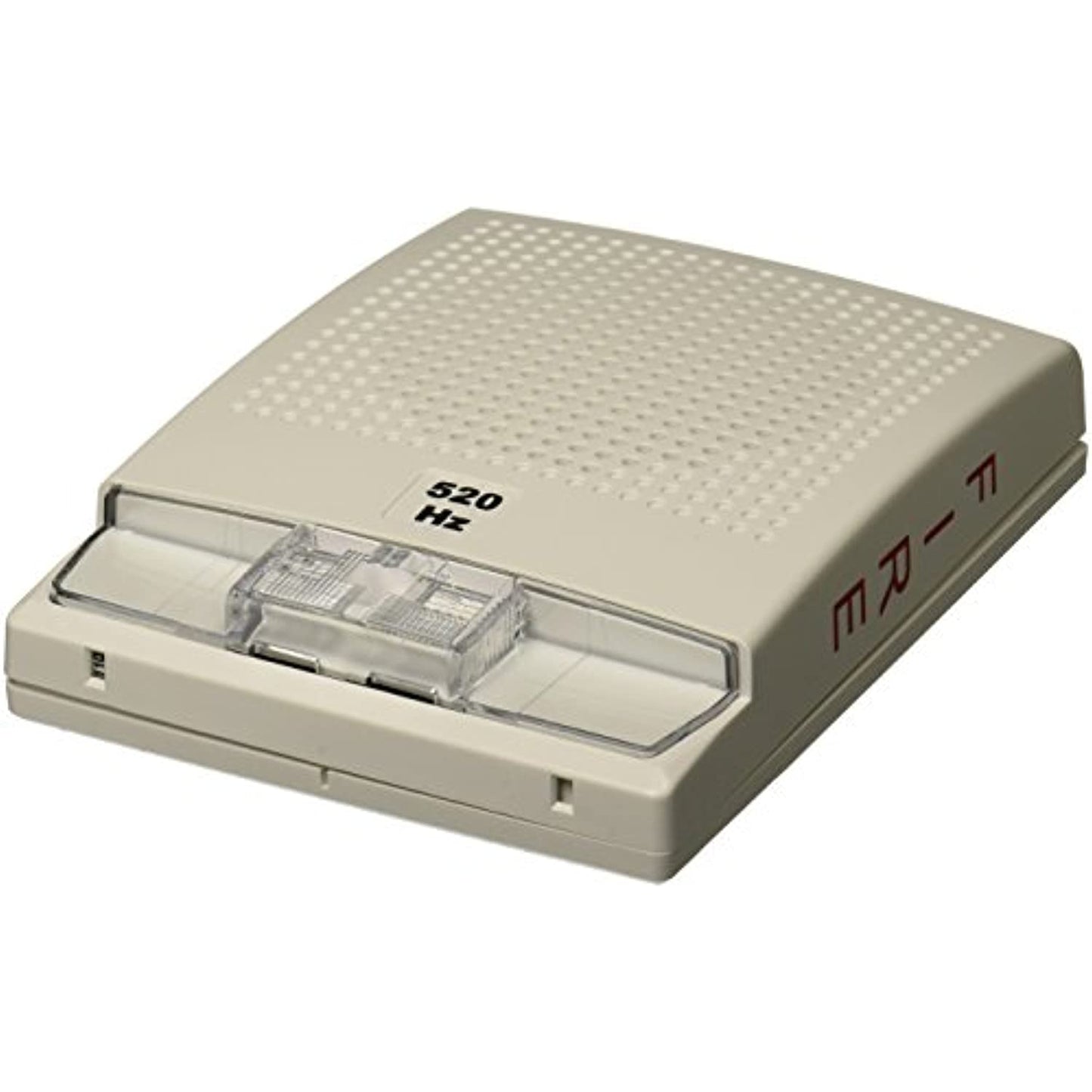

Edwards Signaling G4LFWF-HVM Genesis G4LF Series Low Frequency 520 Hz Horn Strobe, “FIRE” Marking, White

Description

G4LF Series notification appliances provide the benefits of Genesis life safety signals with output suitable for sleeping areas and other applications requiring low frequency audible tones. These high-performance appliances generate a crisp 520 Hz tone in the standard 3-3 temporal pattern. An optional setting configures the appliance for continuous audible output — a critical feature for coded notification appliance circuits. G4LF appliances also feature field-configurable high and low dB output settings.

When connected to compatible Edwards control equipment, G4LF Series audible output remains synchronized with all Genesis audible signals on the same Notification Appliance Circuit, including standard 3.2 kHz Genesis audible signals.

Available G4LF models include audible-only appliances, as well as combination audible-visible signals. Combination appliances feature Genesis FullLightTM strobe technology, which produces a smooth light distribution pattern without the spikes and voids that characterize bulky specular reflectors. This ensures the entire coverage area receives consistent illumination exceeding UL-1971 light distribution requirements. It also results in a slim, low profile device that blends with any decor. Candela output is field configurable.

When connected to a compatible synchronization source, Genesis appliances synchronize (strobes to UL 1971) to within 10 milliseconds indefinitely without the need for external modules or other equipment. See the Specifications section for a list of synchronization sources.

Features

• Unique low-profile design
• Choice of colors and markings
• Easy to install
• Easy to configure without removing the device
• Unparalleled performance

Synchronization
Sources
FACPs: VM and VS Series life safety systems, FX Series fire alarm control
panels. Moduels: GSA-CC1S, GSA-MCC1S, SIGA-CC2A, GSA-MCC2A,
EG1M-RM. Power supplies: MIRBPS6A, MIRBPS10A, APS6A, APS10A.
