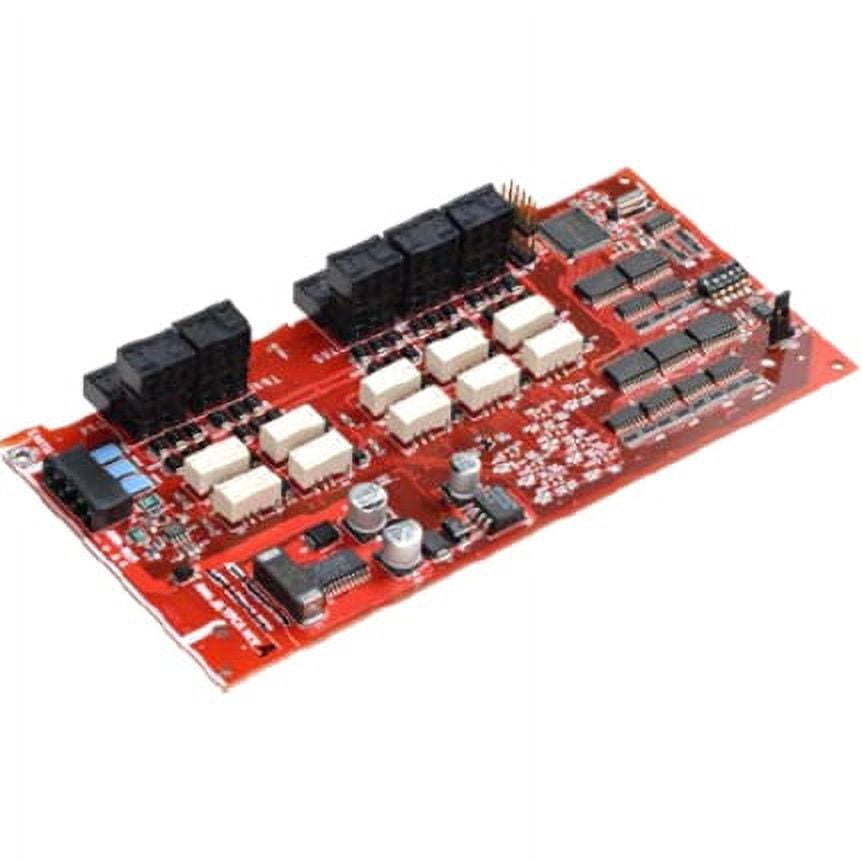

Fire-Lite ANN-RLY Relay Module with 10 Programmable Form Relays for Compatible Fire Alarm Control Panel
$300.52 & Free Shipping
- ANN-RLY connects to the ANN-BUS terminal on the FACP and requires minimal programming.
- Provides 10 programmable Form-C relays.
- Ten Form-C relays can be programmed for various functions; Alarm, Trouble, Supervisory, AC Loss, Waterflow Delay, Input Zones and Silenceable Alarm.
Only 5 left in stock
Description
The ANN-RLY relay module provides 10 programmable Form- C relays when used with a compatible FACP (Fire Alarm Control Panel). This module may be mounted inside the FACP main circuit board chassis, ROME or in the battery area of the enclosure using optional mounting bracket.
The ANN-RLY and the FACP communicate over a two-wire serial interface employing the ANN-Bus communication format. An additional two wires are used for 24-volt DC power. A single four-conductor unshielded cable may be used for both power and data communications. Up to eight ANN-Bus devices may be connected to the ANN-Bus of each FACP.
Main Features
- ANN-RLY connects to the ANN-BUS terminal on the FACP and requires minimal programming.
- Provides 10 programmable Form-C relays.
- Ten Form-C relays can be programmed for various functions; Alarm, Trouble, Supervisory, AC Loss, Waterflow Delay, Input Zones and Silence-able Alarm.
- Compatible with the MS9600LS, MS-9600UDLS, MS-9200UDLS, MS-9050UD, MS-5UD-3, MRP-2001, MRP-2002and MS-10UD-7.
- May be powered by 24 VDC from the host FACP or by remote power supply
- Up to eight ANN-BUS devices may be connected to the ANN-BUS of each FACP.
Additional information
| Weight | 0.8375 lbs |
|---|---|
| Dimensions | 12 × 10 × 4 cm |
| Item Condition | New |
| MPN | FL-ANNRLY |
| Brand |
