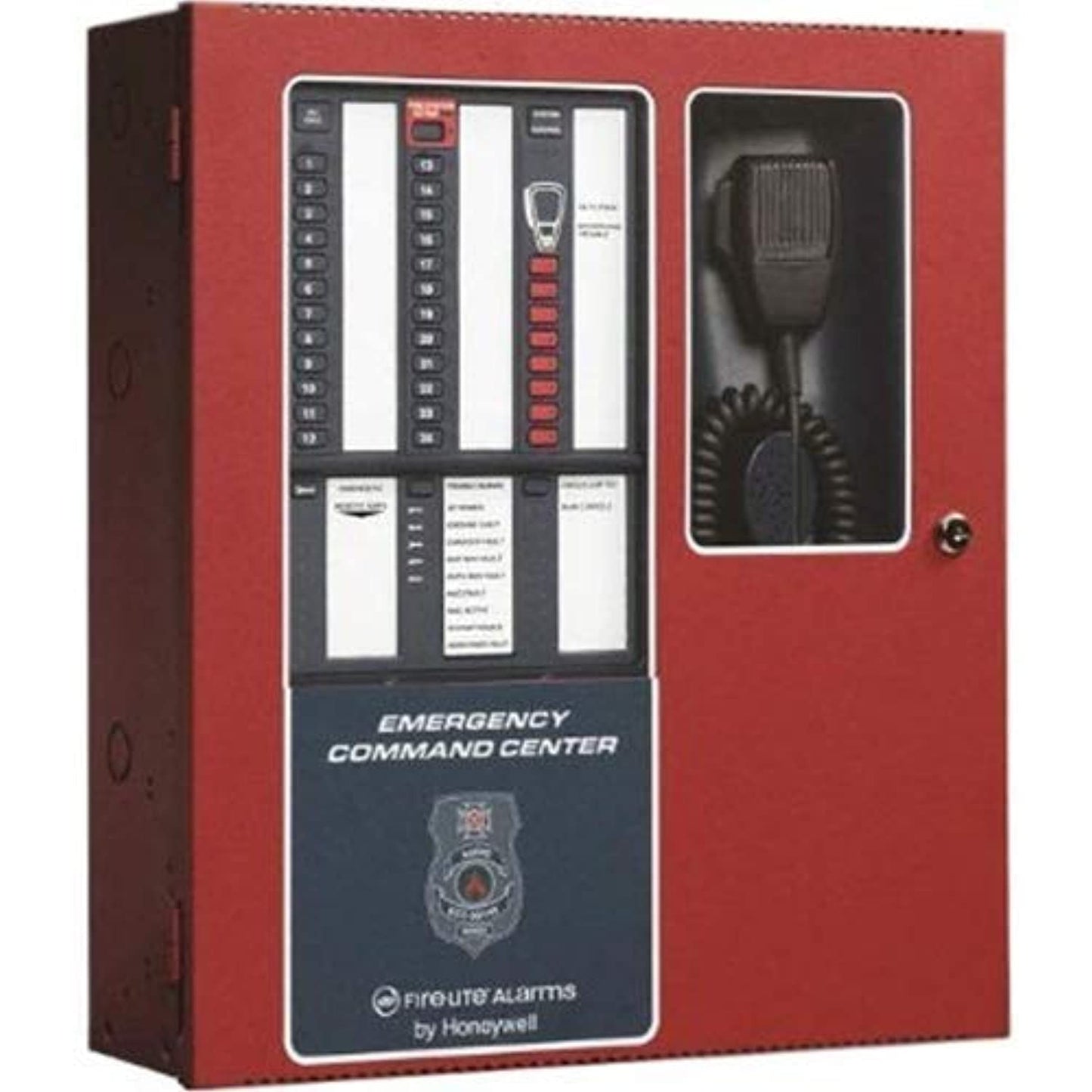

Fire-Lite ECC-50/100 Emergency Command Center, 25VRMS Single Speaker Zone Emergency Voice Evacuation System

Fire-Lite ECC-50/100 Emergency Command Center, 25VRMS Single Speaker Zone Emergency Voice Evacuation System – ECC-50/100

Fire•Lite’s ECC-50/100 and ECC-50/100E are multipurpose emergency command center voice evacuation panels for fire applications, mass notification applications, or both. The Primary Operating Consoles (POCs) deliver 50 or 100 watts of audio power for distribution to up to eight speaker circuits (i.e. zones).

The ECC-50/100(E) comes standard with a single speaker circuit and a built-in 25Vrms, 50 watt amplifier. Add a secondary 50 watt amplifier (ECC-50W-25/70V)  for single speaker circuit backup or to increase system capacity to two speaker circuits and an additional 50 watts of audio power. An optional ECC-CE6 module added to the ECC-50/100(E) will upgrade the system to a maximum of eight speaker circuit outputs. All speaker output circuits can be wired in either Style Y (Class B) or Style Z (Class A) configuration.

The ECC-50/100(E) has fourteen field programmable messages (up to 60 seconds each), built-in field configurable pre- and post-announce tone generators and a fully supervised Notification Appliance Circuit (NAC) with 2.0 amps of synchronized NAC power. The ECC-50/100(E) includes three built in Form-C relay contacts, (AC power, trouble and MNS active) a NAC follower input for triggering the on board NAC circuit and 500mA special application power. A built-in power supply with switch mode technology delivers operational power to the panel and an onboard battery charger supports charging up to 26AH batteries (ECC cabinet holds up to 18AH batteries).

Emergency Command Center Main Features:

• UL Listed to UL2572 Communication (Control Units Mass Notification Systems).
• Modular design for maximum system flexibility and easy expansion.
• 50 watts of 25 V audio power (expandable to 100 watts) RMS.
• Optional amplifier configurable as a backup in the event the primary amplifier fails. Amplifiers are independently powered to eliminate system interruption during a short circuit condition
• Eight Command Input Circuits to activate messages 1 to 8:
• Seamless integration and control when connected to select Fire-Lite panels through the ANN/ACS (EIA-485) communication bus.
• Speaker circuits are expandable by up to 8 outputs (With an optional circuit expander module).
• Removable terminal blocks for ease of servicing and module replacement.
• 2 amp Notification Appliance Circuit (NAC) output, sync generator, or follower for System Sensor, Wheelock or Gentex protocols:
• Integral supervised microphone.
• upload 520HZ square wave tones  to ECC-50/100 to meet NFPA Low Frequency requirements
