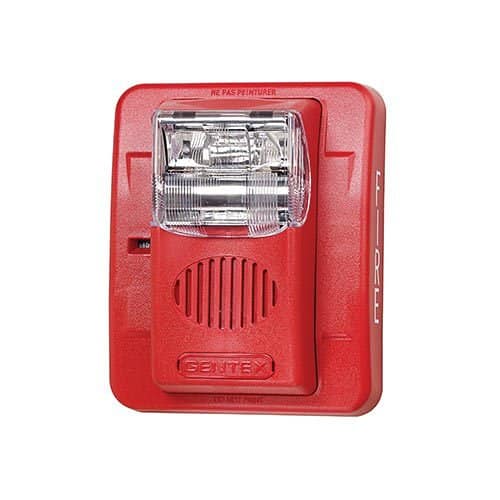

Gentex GEC24-177WR GEC 24VDC Fixed Candela, Low Profile Evacuation Horn/Strobe, 177CD, Wall Mount, Red Faceplate

& Free Shipping

Gentex GEC24-177WR VDC Fixed Candela, Low Profile Evacuation Horn/Strobe, 177 cd, Wall Mount, Red Faceplate

Special Order

Want to be notified when this product is back in stock?

SKU: GN-9041143 Category:

Description

The Commander2 Series is a low profile strobe, horn and horn/strobe combination that offers dependable audible and audible/visual alarms and the absolute lowest current available.

The GE Series is available in fixed candela options of 15/75 and 177. The Commander2 Series horn offers a continuous or synchable temporal 3 in 2400Hz and mechanical and, chime as well as a whoop tone. All tones are easy for the professional to change in the field by using switches.

The Commander2 Series is shipped with the standard 4″ mounting plate which incorporates the popular Super-Slideยฎ feature that allows the installer to easily test for supervision. The product also features a locking mechanism which secures the product to the bracket without any screws showing. The Commander2 Series also features the patented Checkmateยฎ Instant Voltage Verification feature which allows the installer to check the voltage drop draw and match it to the blueprint.

The GE Series appliances are ANSI/UL 464, ANSI/UL 1971, ANSI/UL 1638, CAN/ULC S525 (24 VDC only) and/or CAN/ULC S526 (24 VDC only), listed for use with fire protective systems and are warranted for three years from date of purchase.

Main Features

  • Nominal voltage 24 VDC for horn, strobe and horn/strobe
  • Nominal voltage 12 VDC for horn
  • Fixed candela models of 15/75 and 177
  • Unit Dimensions: 5″ (12.7 cm) high x 4.5″ (11.43 cm) wide x 2.5″ (6.35 cm) deep
  • Super-Slideยฎ Bracket, Ease of Supervision Testing
  • Checkmateยฎ Instant Voltage Verification
  • Prewire entire system, install mounting bracket, then install signals
  • lower installation and operating costs
  • Input terminals 12 to 18 AWG
  • Switch selection for high or low dBA

Additional information

Weight 1 lbs
Brand
