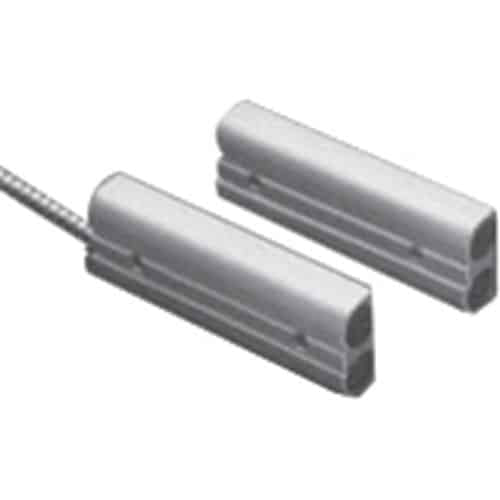

GRI 250-36 Industrial Overhead Door Switch, Wall Mount, Closed Loop, 2-1/2″ Gap

& Free Shipping

  • Magnetic bracket included.
  • Switch, magnet and hardware are available separately
  • Available in closed loop, open loop and SPDT

Special Order

Want to be notified when this product is back in stock?

SKU: GI-25036 Category:

Description

The GRI 200 Series is referenced and produced as an industrial grade floor mount switch. Primarily used for the protection of overhead doors where the operation of heavy motorized traffic would make it impossible to use any type of plastic encapsulated switch.

The 200 housing is extruded from 6063 T5 aluminum material and tested to withstand a crushing force of 20,000 pounds or 10 tons without harming the delicate reed switch. All mounting hardware including lead anchors are provided as well as a mounting bracket for the actuating magnet.

  • Extruded Aluminum Floor or Wall Mount Switch
  • Universal Fit Mounting Holes on 200-36 Series
  • Screw Mount
  • #22AWG In 36โ€ Stainless Steel Armored Cable
  • Longer Leads Upon Request
  • Hermetically Sealed
  • Plated Contacts Resist Sticking or Freezing
  • Magnet, Bracket and Mounting Hardware Included
  • Built-in E.O.L. Resistors Upon Request
  • Supervisory Loops Available Upon Request
  • Switches and Magnets Available Separately
  • Lifetime Warranty

Additional information

Weight 1 lbs
