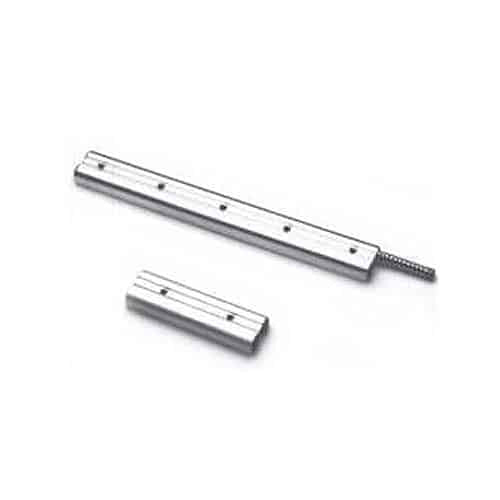

GRI 250-36WG Overhead Door Switch Set, Wall Mount, Closed Loop, 3″ Gap, Wide Gap
& Free Shipping
- Designed Especially For Loose Fitting, Worn or Damaged Overhead Doors
- Expanded Area of Activation For Doors That don’t return to the exact or
- approximate position upon closure
Special Order
Want to be notified when this product is back in stock?
Description
The GRI 200 Series is referenced and produced as an industrial grade floor mount switch. Primarily used for the protection of overhead doors where the operation of heavy motorized traffic would make it impossible to use any type of plastic encapsulated switch.
The 200 housing is extruded from 6063 T5 aluminum material and tested to withstand a crushing force of 20,000 pounds or 10 tons without harming the delicate reed switch. All mounting hardware including lead anchors are provided as well as a mounting bracket for the actuating magnet.
- Extruded Aluminum Floor or Wall Mount Switch
- Universal Fit Mounting Holes on 200-36 Series
- Screw Mount
- #22AWG In 36โ Stainless Steel Armored Cable
- Longer Leads Upon Request
- Hermetically Sealed
- Plated Contacts Resist Sticking or Freezing
- Magnet, Bracket and Mounting Hardware Included
- Built-in E.O.L. Resistors Upon Request
- Supervisory Loops Available Upon Request
- Switches and Magnets Available Separately
- Lifetime Warranty
Additional information
| Weight | 1 lbs |
|---|---|
| Brand |
