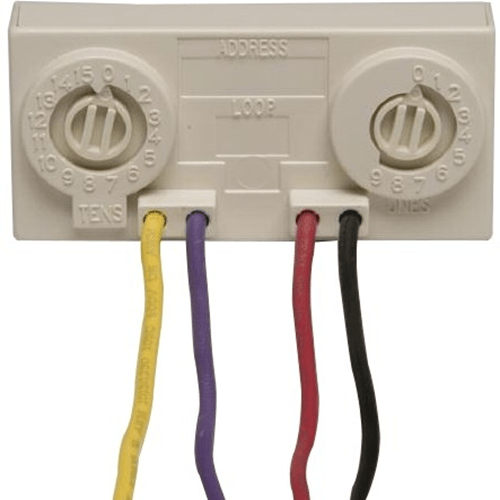

Silent Knight SK-MINIMON Addressable Mini Monitor Module for FACPs

Description

The SK-MINIMON is an addressable mini monitor module for use with the Honeywell Silent Knight fire alarm control panels (FACPs). The SKMINIMON acts as an interface to contact devices, such as waterflow switches and pull stations. The SK-MINIMON supports Class B supervised wiring to the load device. Conventional 4-wire smoke detectors can be monitored for alarm and trouble conditions

INSTALLATION

Mount the SK-MINIMON in a single gang junction box directly behind the monitored device. Its small size and light weight allow it to be installed without rigid mounting requirements.

Mini Monitor Module Features

• Single contact monitor
• SK-Minimon support for Class B (Style B) contact monitor wiring
• Small and lightweight size allows for flexible mounting options
• Rotary address switches for fast installation
• UL Listed
• CSFM Listed
• FM Approved

Compatibility

The SK-MINIMON is compatible with the following Honeywell Silent Knight fire alarm control panels:

• 6820: Addressable fire alarm control panel
• 6820EVS: Addressable fire alarm control panel with an emergency voice system.
• 6808: Addressable fire alarm control panel
• 6700: Addressable fire alarm control panel
• 5700: Addressable fire alarm control panel
• 5808: Addressable fire alarm control panel
• 5820XL: Addressable fire alarm control panel
• 5820XL-EVS: Addressable fire alarm control panel with an emergency voice system
