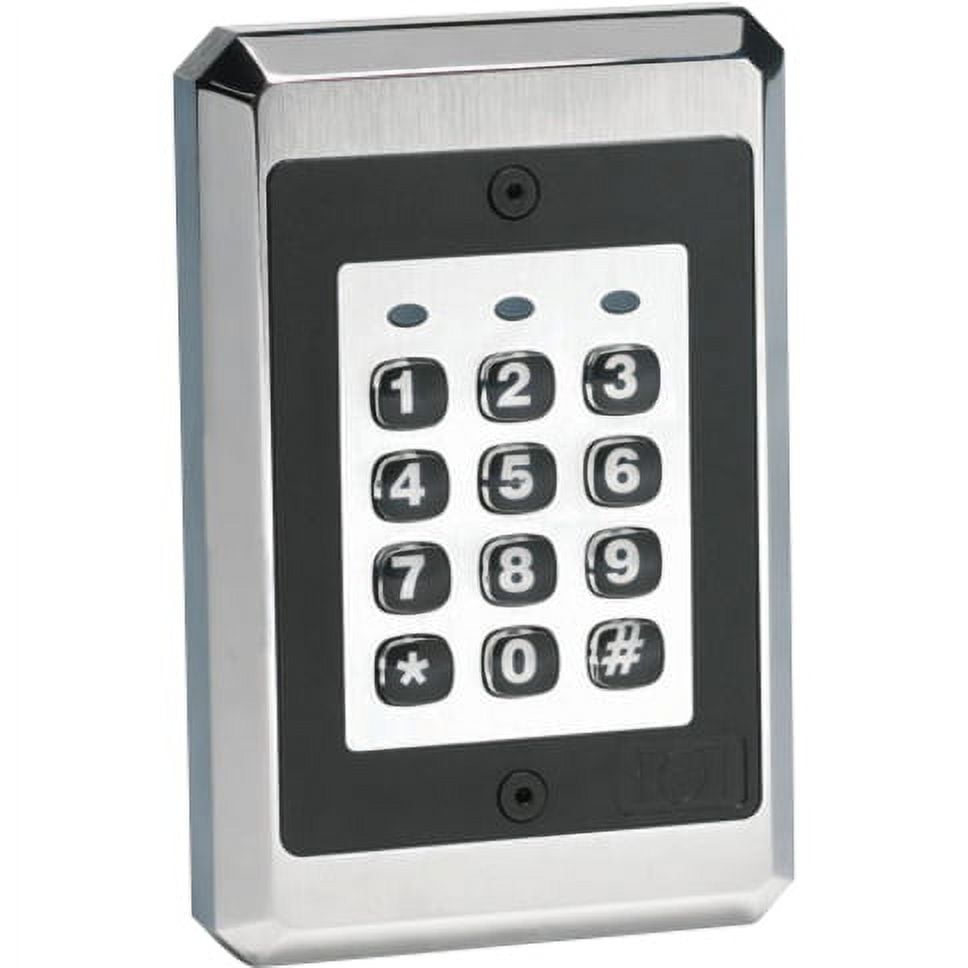

Linear 212ILW Keypad Outdoor Surface Mount

Description

The 212iLW keypad has a chrome plated metal trim with hardened backlit keys. There are LED’s shown through the face plate to indicate operation status and provide the user confirmation of PIN number entry. Designed for indoor or outdoor use, the iLW keypad mounts to any standard single-gang electrical back box and provides superior durability.

Features

• 120 users
• Single-gang flush mount design
• Hardened backlit keys
• Heavy chrome-plated trim ring
• Keypress feedback via sounder and yellow LED
• Built-in assignable sounder
• Bi-color Red/Green LED indicates relay status
• Indoor/outdoor use
• Keypad Programmable
• Functionality mode: 212, 242

Specifications

• Operating voltage: 10-30 VDC; 12-24 VAC auto-adjusting
• Dimensions: 3.47″ W x 5.14″ H x .71″ D
• Temperature tolerance: -20F to 130F
• Order number: 0-230722
