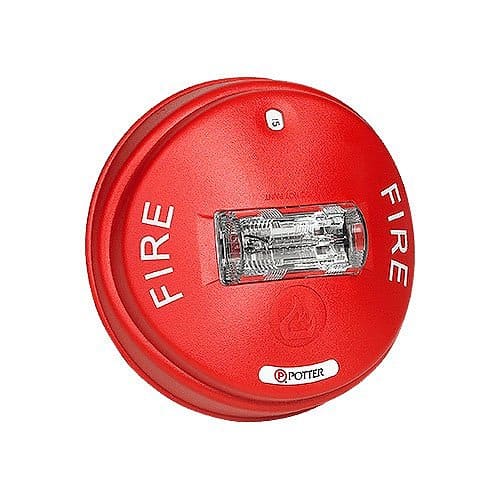

Potter CS-24W 24VDC Ceiling Mount Selectable Strobe, White

Description

The Potter CS Series is a ceiling mount strobe or horn/strobe combination that offers dependable audible and visual alarms and the lowest current consumption. The CS offers tamperproof field selectable candela options of 15, 30, 75, 95, 115 and 150 candela.

The CS Series has a very minimal operating current and has a minimum flash rate of 1Hz regardless of input voltage. The Ceiling Mount Series comes standard with the 4″ mounting plate which incorporates the popular Super-Slide® feature that allows the installer to easily test for supervision. The product also features a locking mechanism which secures the product to the bracket without any screws showing.

The CS also features the patented Checkmate® – Instant Voltage Verification feature which allows the installer to check the voltage drop draw without removing the signal. The CS Series appliances are ANSI/UL 464 and ANSI/UL 1971 listed for use with fire protective systems. Part No.4890020

Main Features

• Nominal voltage 24 VDC
• Tamperproof field selectable candela options 15, 30, 75, 95, 115, & 150
• Super-Slide® Bracket – Ease of Supervision Testing
• Checkmate® – Instant Voltage Verification
• Synchronize strobe and/or horn with Gentex AVSM Control Module
• Prewire entire system, install mounting bracket, then install signals
• Documented lower installation and operating costs
• Input Terminals 12 to 18 AWG
• Switch Selection for High or Low dBA
• Switch Selection for 2400Hz or mechanical Tone
