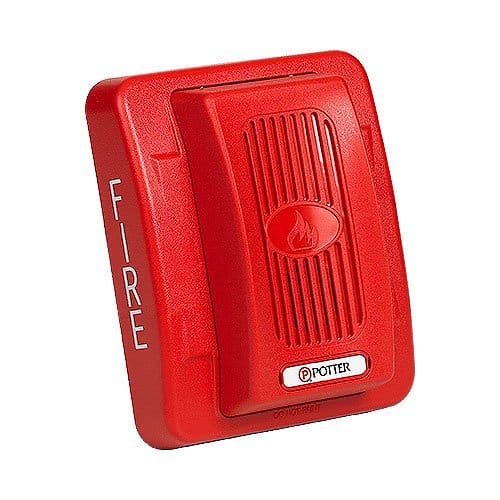

Potter EH-24R Low Profile Electric Horn, Red
& Free Shipping
- Nominal voltage 24 VDC
- Horn is available in 12 VDC or 24 VDC
- Super-Slide Bracket – ease of supervision testing
Special Order
Want to be notified when this product is back in stock?
Description
The EH24 Series is a low profile electronic horn that offers dependable audible output at the lowest current available.
The EH24 Series horn offers a continuous or synchronizable temporal three in 2400Hz and mechanical tone, a chime, and whoop tone. All tones are easy for the professional to change in the field by using switches.
The EH24 Series is shipped with the standard 4″ mounting plate which incorporates the popular Super-Slide® feature that allows the installer to easily test for supervision. The product also features a locking mechanism which secures the product to the bracket without any screws showing.
The EH24 Series also features the patented Checkmate® – Instant Voltage Verification feature, which allows the installer to check the voltage drop draw and match it to the blueprint.
Main Features
- Nominal voltage 24 VDC
- Horn is available in 12 VDC or 24 VDC
- Super-Slide Bracket – ease of supervision testing
- Checkmate® – instant voltage verification
- Synchronize strobe and/or horn with AVSM Control Module
- Prewire entire system, install mounting bracket, then install signals
- Documented lower installation and operating costs
- Input terminals 12 to 18 AWG
- Switch selection for high or low dBA
- Switch for chime, whoop, mechanical, and 2400 Hz tone
Additional information
| Weight | 1 lbs |
|---|---|
| Brand |
