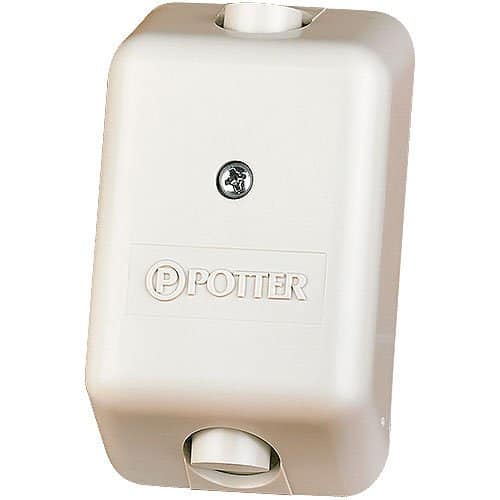

Potter HUB-T Dual Button Hold-Up Switch

Description

The HUB-T Series Hold-Up Buttons provide two sets of momentary or latching DPDT contacts for actuating surveillance cameras or other security applications, in addition to the hold-up signal. The two sets of contacts may be used independently of each other, or they may be wired in series with a jumper wire for additional protection against false alarms.

Main Features

• UL & CUL Listed
• Dimensions: 2 1/16″W x 3 7/16″L x 1 1/4″H (52.4 cm W x 87.3 cm L x 2.7 cm H)
• Weight: 2.4 oz. (68.0 g.)
• Switch Rating: 3 Amps at 28V DC/AC, .05 Amp at 125V DC Resistive
• Enclosure: ABS Plastic
• Temperature Range: 32°F to 140°F (85% maximum humidity)
• Environmental Limitations: Not recommended for outdoor use or use in coolers or freezers.
