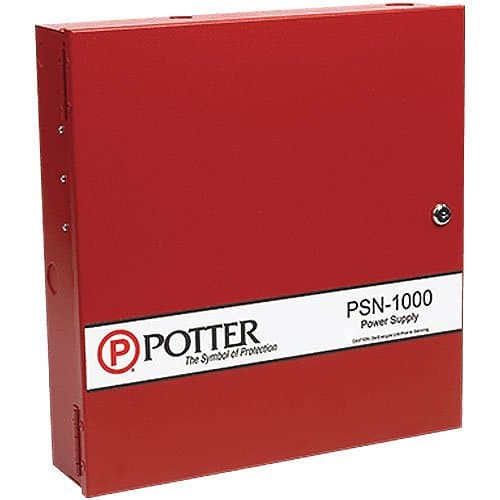

Potter LOC-PSN1000 with Bracket for LOC-1000 (3520671)

& Free Shipping

  • 10 Amp Power Supply
  • 3 Amps, regulated per NAC
  • 6 NACs Class B or 3 NACs Class A

Special Order

Want to be notified when this product is back in stock?

SKU: PL-LOCPSN100 Category:

Description

The LOC-PSN1000 series is a UL listed intelligent 10 amp notification power supply and P-Link (RS-485) repeater for the LOC-1000. The power supply connects to the P-Link bus from the control panel and is operated and supervised from the panel. The power supply may be installed 6,500 feet from the control panel. The LOC-PSN1000 then repeats the P-Link communication for another 6,500 feet.

The power supply has six (6) Class B or three (3) Class A power outputs. Each output is regulated and power limited with a 3 Amp maximum rating. In addition, the LOC-PSN1000 has two (2) programmable dry contact inputs. The dry contact inputs are Class B, supervised inputs.

Each output can be independently configured to provide one of four synchronization patterns, constant power, ANSI temporal Code 3 or Door Holder power. Using our patented Quadrasync technology, the panel can be configured to synchronize Potter/AMSECOยฎ, Gentexยฎ, Cooper Wheelockยฎ and System Sensorยฎ.

The power supply operates on either 120 or 220 VAC power and has a regulated 24 VDC output. In addition, the panel can charge up to 55 AH batteries and will house 18 AH batteries.

Main Features

  • Ability to mount power supply in a LOC-1000
  • 6 Class B or 3 Class A power outputs
  • 2 Programmable dry contact inputs

Additional information

Weight 15 lbs
