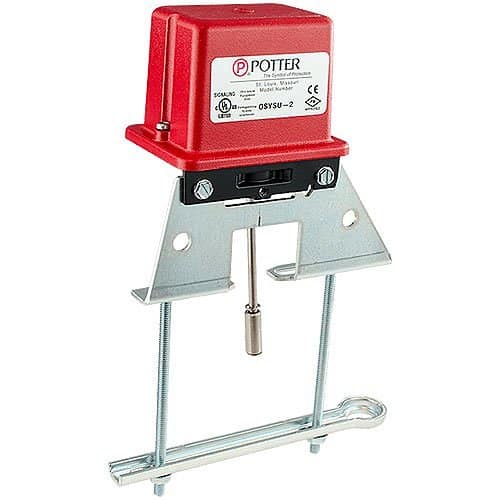

Potter OSYSU-2 Outside Screw and Yoke Valve Supervisory Switch (Double Switch)
$114.58 & Free Shipping
- NEMA 4X (IP 65) and 6P (IP 67)
- ย -40ยบ to 140ยบ (-40ยบC to 60ยบC) operating temperature range
- Visual Switch Indicators and Two conduit entrances
In stock
Description
The OSYSU is used to monitor the open position of an OS&Y (outside screw and yoke) type gate valve. This device is available in two models; the OSYSU-1, containing one set of SPDT (Form C) contacts and the OSYSU-2, containing two sets of SPDT (Form C) contacts. These switches mount conveniently to most OS&Y valves ranging in size from 2โ to 12โ (50mm to 300mm).
They will mount on some valves as small as ยฝโ (12,5mm). The cover is held in place by two tamper resistant screws that require a special tool to remove. The tool is furnished with each device.
Main Features
- NEMA 4X* (IP 65) and 6P (IP 67)
- *Enclosure is 4X. For additional corrosion protection of
- mounting hardware, use model OSYSU-2 CRH
- -40ยบ to 140ยบ (-40ยบC to 60ยบC) operating temperature range
- Visual switch indicators
- Two conduit entrances
- Adjustable length trip rod
- Accomodates up to 12AWG wire
- Three position switch detects tampering and valve closure
- Knurled mounting bracket prevents slipping
Additional information
| Weight | 1 lbs |
|---|---|
| Brand |
