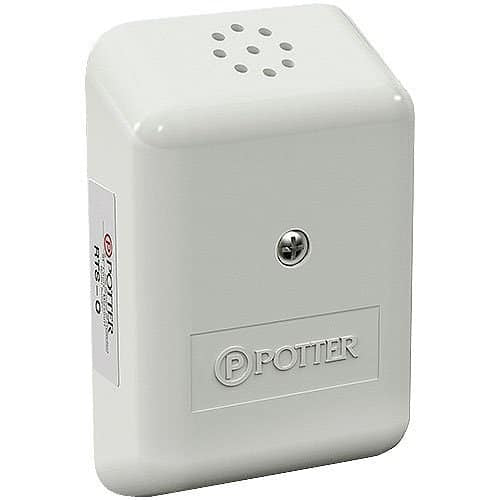

Potter RTS-C Normally Closed Room Temperature Switch

Description

Each unit consists of a bi-metal operating mechanism, featuring hermetically sealed precious metal contacts, N.O. or N.C., which automatically reset for repetitive operation, eliminating the need for sensing element replacement. Small compact design, highly resistant to vibration and corrosion. Easily installed using the enclosed hardware or adhesive mounting pad. Screw terminals permit easy installation in single or multiple detector circuits.

The RTS Series complies with the requirements of NFPA 13 and 72 for a room temperature switch to operate at 40°F to protect a dry pipe valve from freezing. The RTS can also be used for other temperature detection applications.

Main Features

• Easily installed
• Completely sealed sensor, moisture and vapor resistant
• Highly resistant to vibration and corrosion
• Highly sensitive to temperature changes
• No sensitivity loss due to aging
• Repetitive operation without the need to replace sensing elements
• Small compact design
• Precision and quality at low cost
