Power Supply 8 Fuse 12VDC Or 24VDC @ 6A
$323.14 & Free Shipping
- Access Power Controller with power supply.
- 8 fused power limited outputs provide 12VDC or 24VDC @ 6A.
- Outputs are individually selectable for Fail-Safe or Fail-Secure operation or as dry form “C” contacts.
In stock
Description

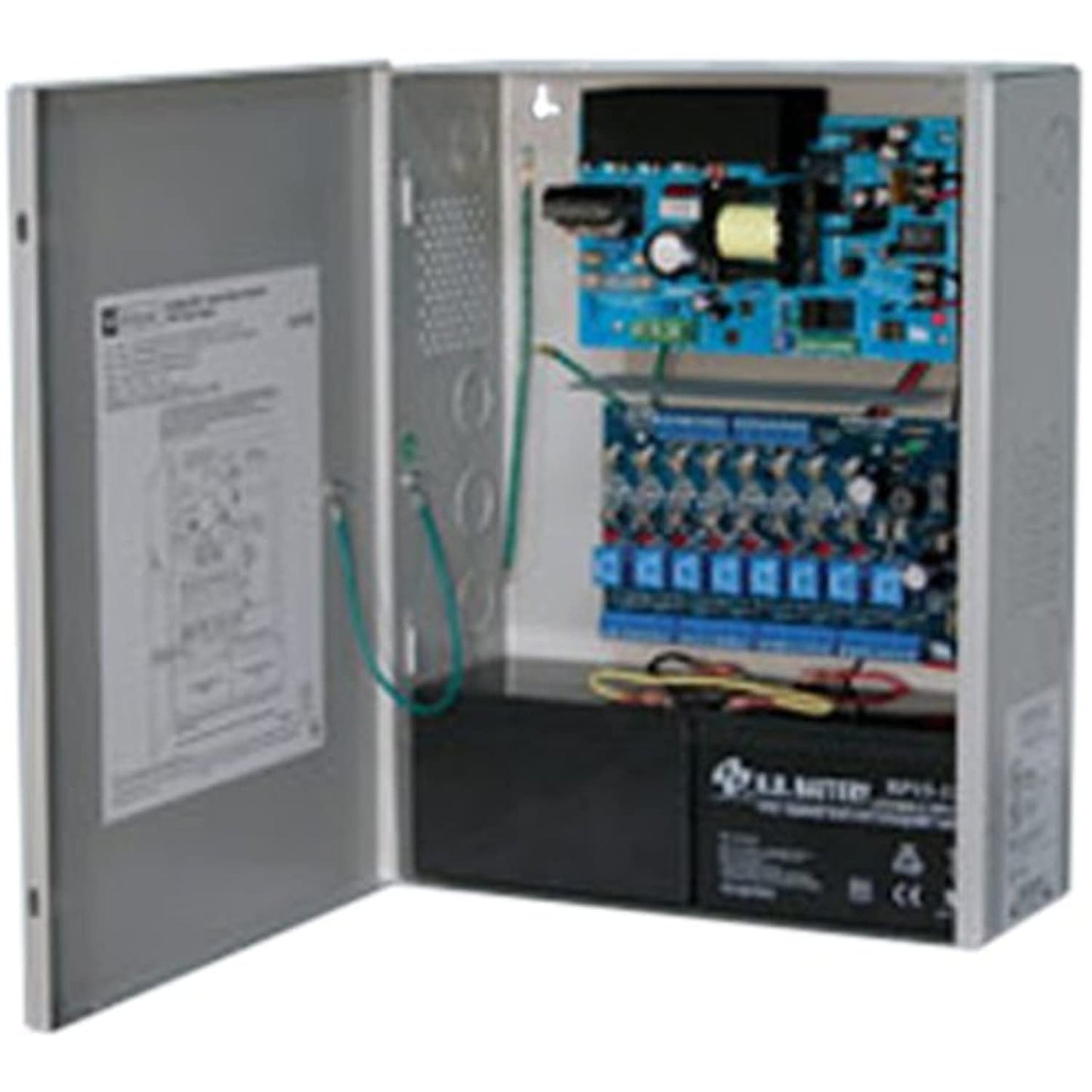

Altronix AL600ULACM
Altronix ACM series distribute and switch power to access control systems and accessories. They convert a 115VAC, 60Hz input into eight (8) independently controlled 12VDC or 24VDC fuse protected outputs. These power outputs can be converted to dry form โCโ contacts. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. Units will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes.
The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight (8) outputs.
- Eight (8) independently controlled outputs.
- Output options: a) Eight (8) Fail-Safe and/or Fail-Secure power outputs; b) Eight (8) form โCโ 5A rated relay outputs; c) Any combination of the above.
- Eight (8) auxiliary power outputs (unswitched).
- Output fuses are rated @ 3.5A.
- Filtered and electronically regulated outputs.
- Supervision: – AC Fail/ Battery Fail and Battery Presence.
- Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the eight (8) outputs.
- Alarm output relay indicates that FACP input is triggered
- Fire Alarm disconnect input options: a) Normally open (NO) or normally closed (NC) dry contact input b) Polarity reversal input from FACP signaling circuit.
- Built-in charger for sealed lead acid or gel type batteries.
Additional information
| Weight | 11.599804 lbs |
|---|---|
| Brand |
