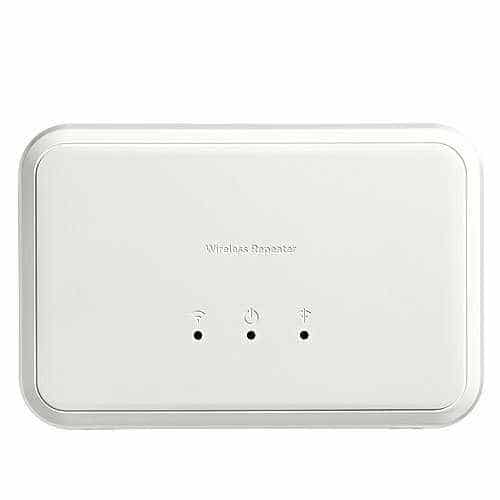

Resideo PROSIXRPTR Wireless Repeater for ProSeries and SiX Sensors

Description

PROSIXRPTR is a wireless repeater that extends the range of SiX™ wireless devices. It’s an ideal solution for commercial and residential installations that require increased RF range. PROSIXRPTR eliminates the need to run wires to a secondary receiver and also eliminates the need to upgrade to a larger control panel that supports two receivers, saving time and money.

Main Features

• Extends the range of SiX wireless devices
• Receives alarm, status and control messages from SiX technology sensors, and repeats these messages to the control panel via the primary receiver
• Transmits its own status, including wall and case tamper, AC loss, low battery and RF Jam
• LEDs provide visual status for: AC/Battery, RF Jamming, RSSI (Received Signal Strength Indicator), which shows the signal strength between the repeater and the controller
• 24-hour backup rechargeable battery
• ETL listed to meet UL standards
• Up to two PROSIXRPTR Repeaters supported per installation
• For indoor use only. Range can vary depending on building construction, wireless interference, and other factors.
• Input Voltage: 100–240 VAC, 50–60 Hz
• Operating Voltage: 5VDC (1A)
• Battery: P/N 300-10342 Rechargeable Backup Battery: Lithium ion battery pack rated
• Dimensions: 6.9″ (175mm) L x 4.4″ (113mm) W x 1.2″ (31mm) D
• Acceptable Cable Size: 18–22AWG
