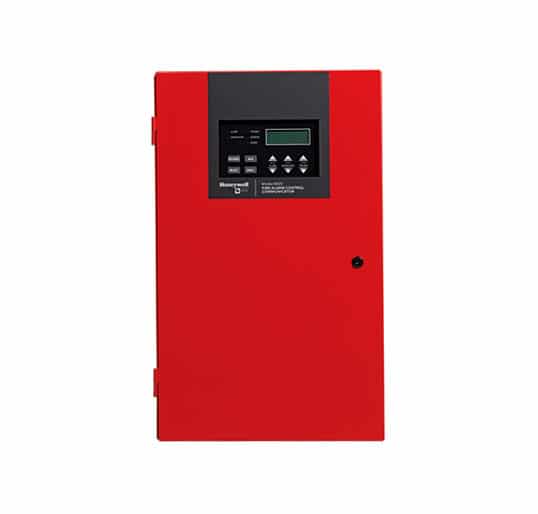

Silent Knight 006820 Silent Knight 6820 1110-Point Addressable Fire Alarm Control Panel (Replaces 5820XL)

Description

The 6820 is a address fire alarm control panel (FACP) that can be configured to achieve a point capacity of 1110 points and connect up to 17 panels in a single communication link. It has a built-in signaling line circuit (SLC), which can support 159 System Sensor® (SK) sensors and 159 SK modules or 127 Hochiki® (SD) devices per loop. To increase point capacity, SLC loops can be added using the 6815 SLC expander for SK devices or the 5815LX expander for SD devices, increasing point capacity to a maximum of 1110 points for SK devices and 635 points for SD devices. It also has a built-in, dual-line POTS and IP communicator with additional cellular options available. The 6820 is SWIFT® wireless compatible.

1110 Point Control Panel Main Features

• Connect up to 17 panels with convenient single point communications. Use either copper wire or fiber optic cable panel connectivity within the same linked system
• Use Multiple Signal Line Circuits (SLCs) within one system limited only by maximum points available
• Built-in dual path IP and POTs communication for reliable dual path backup
• Built-in USB interface for convenient and speedy programming
• SWIFT® capable for wireless detection
• Convenient field-upgradeable firmware
• Supports up to 16 remote annunciators
• Programmable date setting for automatic and convenient Daylight Saving Time changes
• 4 x 20 annunciator with 80 character display and large easy-use keypad
• Includes access to Jumpstart™, HFSS programming software and the SKST selection tool
• NAC Circuits: 6; 6 amps power supply
• Supports Class B (Style 4) and Class A (Style 6) configuration for SLC, SBUS, and Flexput circuit
