Silent Knight 6860 Remote Annunciator: 160-Character LCD: 24V DC

Description

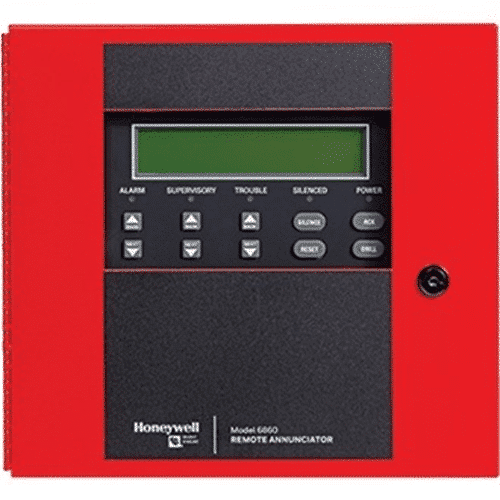

6860 Remote Annunciator

The 6860 remote annunciator can be used to view system status indicators for Honeywell Silent Knight fire alarm control panels (FACPs) from anywhere within the system. Providing a convenient way to view system status signals.

This Annunciator comes in a locked, key controlled cabinet – combining security with easy access. It does not require a code or firefighter’s key to silence or
reset a panel, and also has separate scroll buttons for alarm, supervisory and trouble conditions.

The remote annunciator communicates with the main fire alarm control panel through an RS-485 connection.

The 6860 has a large 160 character, 4 x 40 display and four programmable buttons. These features provide more options for set-up and operation when compared to similar remote annunciators.

This unit can be surface or flush mounted. Use the RA-100TR trim ring can for surface mounts.

COMPATIBILITY

The 6860 is compatible with the following Honeywell Silent Knight FACPs:

•  6820: Addressable fire alarm control panel with up to 1,110 addressable points
•  6820EVS: Addressable fire alarm control panel with an emergency voice system, up to 1,110 addressable points
•  6808: Addressable fire alarm control panel with up to 198 addressable points
•  6700: Addressable fire alarm control panel with up to 100 addressable points

Features

• Four programmable buttons can be set to perform, simple, routine or complex tasks, saving time spent at the panel with manual entries
• Four line LCD display with 40 characters per line (160 total characters) provides space for communicating operating messages
• Alarm, Supervisory, trouble, silence and AC power LED indicators
• Accommodates wiring lengths up to 6000 ft. from the control panel for added design and install flexibility
• Lock and key for secure access
• Add user access codes for enhanced security
• Comfortable tactical feel and clear audible confirmation supports accurate programming and easy operation
• On-board piezo sounder audibly indicates alarms, troubles, and supervisory
• Flush or surface mounting
• RS-485 interface to panel
